产品介绍

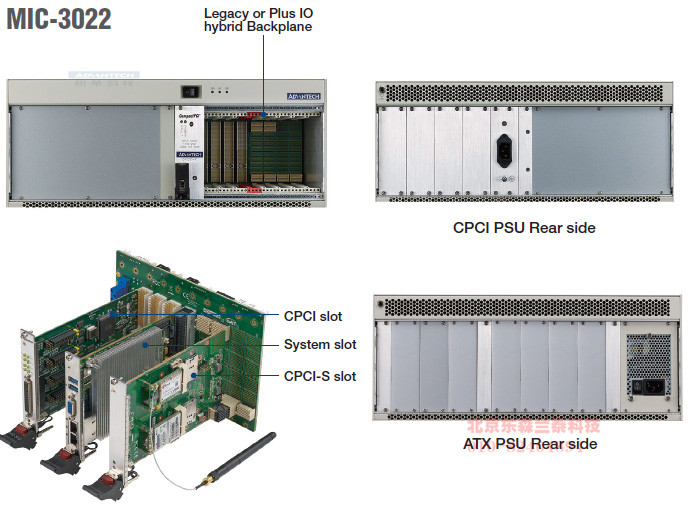

MIC-3022 is a 4U enclosure designed to host up to 8 CompactPCI 3U cards connected via a 32bit 33MHz or 66MHz PCI bus or serial bus. The chassis can be powered by PICMG2.11 CPCI power supplies or an ATX 400W power supply for cost sensitive applications. A CPCI power supply supports a wide range of applications in the industrial market requiring a robust, compact and reliable platform. Rear transition modules can be installed for each of the 8 slots to support I/O extension.

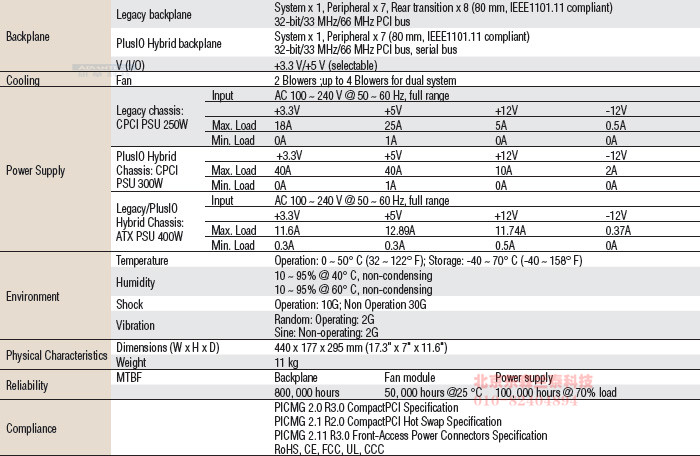

规格
订货信息
| Recommended Configurations | |
| Enclosure | Front I/O Board |
| MIC-3022AE | MIC-3953;MIC-3954; MIC-3955; MIC-3957;MIC-3958 |
| MIC-3022CE | MIC-3953;MIC-3954; MIC-3955; MIC-3957;MIC-3958 |
| MIC-3022PAE | MIC-3953;MIC-3954; MIC-3955; MIC-3957;MIC-3958 |
| MIC-3022PCE | MIC-3953;MIC-3954; MIC-3955; MIC-3957;MIC-3958 |
| Ordering Information | |
| Part Number | Description |
| MIC-3022AE | 3U CPCI enclosure with 400W ATX PSU, single system |
| MIC-3022CE | 3U CPCI enclosure with 250W CPCI PSU, single system |
| MIC-3022PCE | 3U CPCI Plus IO enclosure with 300W CPCI PSU, single system |
| Optional Accessories | |
| Part Number | Description |
| 1757004516-01 | CPCI 250W Power Supply Unit |
| 1757004391-01 | ATX 400W Power Supply Unit |
| 1757004594-01 | CPCI 300W Power Supply Unit |
| 1757004391-01 | ATX 400W Power Supply Unit |
尺寸(单位:mm)
