产品介绍
NXP i.MX8M Plus Cortex®-A53 SMARC 2.0/2.1 核心板,研华Advantech ROM-5722 SMARC 2.0/2.1 核心板 is powered by NXP i.MX8M Plus SOC which includes up to 4 Arm Cortex-A53 cores in combination with one Cortex-M7 real time processor and Vivante GC7000UL graphics engine. It provides USB2.0, Gigabit Ethernet, MIPI-CSI, PCI Express, Dual channel LVDS

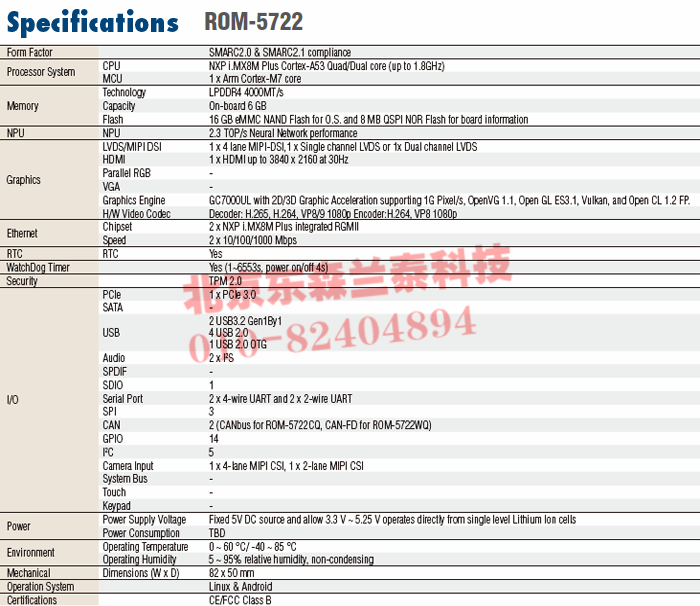

规格
订货信息
| Part No. | CPU | Memory | Display | Power input | Operating Temperature |
| ROM-5722WQ-REA1E |
i.MX8M Plus Quad |
6GB |
1 x HDMI 1 x MIPI DSI, 1 x Single ch LVDS or 1 x Dual ch LVDS |
3 ~ 5.25V | -40 ~85 °C |
| ROM-5722CQ-REA1E |
i.MX8M Plus Quad |
6GB | 1 x HDMI 1 x MIPI DSI, 1 x Single ch LVDS | 3 ~ 5.25V | 0 ~ 60 °C |
| Development Board | |
| Part No. | Description |
| SOM-DB2510 | SMARC 2.1 Carrier Board |
| Optional Accessories | |
| Part No. | Description |
| 1701100300 | Debug port cable |
| 1700019474 | D-SUB 9P(F)/D-SUB 9P(F) RS232/RS485 100c |
| TBD | Heat Spreader |
| 1960063089N001 | Semi Heat Sink |
| 193B021490 | Screw for Heat Spreader and Semi Heat Sink |
| 96PSA-A36W12R1-3 | ADAPTER 100-240V 36W 12V 3A |
| 1700001524 | Power Cord 3P UL 10A125V 180cm |
| 170203183C | Power Cord 3P Europe (WS-010+WS-083) 183cm |
| 1700019146 | Power Cord CCC 3P 10A 250V 183cm |
| 170203180A | Power Cord 3P UK 2.5A/3A 250V 1.83M |
| 1700008921 | Power Cord 3P PSE 183cm |
| SQF-ISDM1-16G-21C | SQF SD Card I-SD UHS-I MLC 16G (0~70°C) |
| SQF-ISDM1-16G-21E | SQF I-SD UHS-I MLC 16G (-40~85°C) |
| EWM-W163M201E | 802.11 a/b/g/n/ac,QCA6174A,2T2R,w/BT41M.2 2230 |
| 1750008717-01 | Dipole Ant. D.B 2.4/5G WIFI 3dBi SMA/M-R BLK |
| 1750007965-01 | Antenna Cable R/P SMA (M) to MHF4, 300mm |
| EWM-C117FL06E* | LTE 4G,3G WCDMA/DC-HSPA+, 2G module, MPCI-L280H |
| 1750008303-01 | Antenna AN0727-64SP6BSM |
| 1750006009 | Antenna Cable SMA (F) to MHF 1.32 25cm |

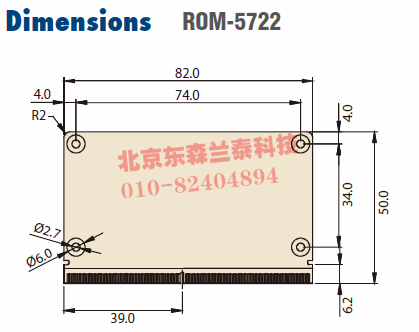

尺寸(单位:mm)
I/O Appearance
