产品介绍
ARK-5420 是无风扇紧凑型嵌入式工控机，双核处理器，宽压输入，坚固耐用，全天24小时无间断工作

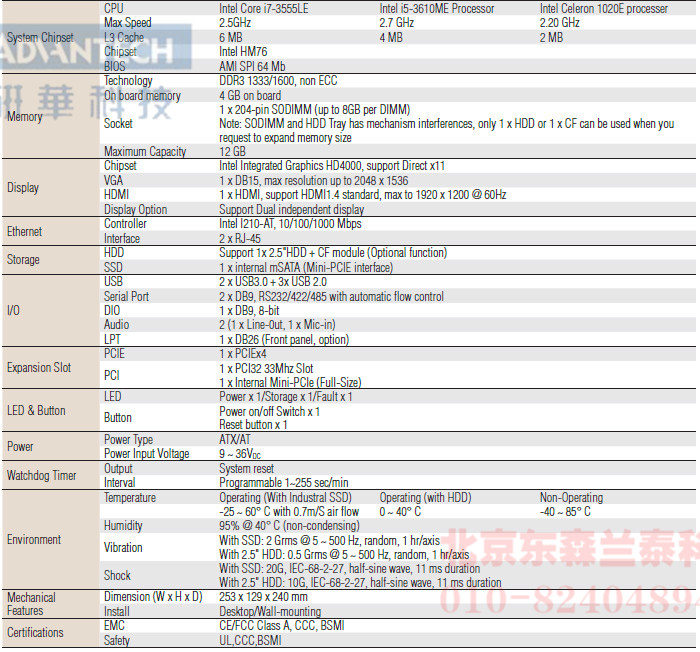

规格
订货信息
| ARK-5420-U2A1E | CELERON-1020E, VGA+HDMI PCIE*4, PCI, Mini-PCIE (三扩展) |
| ARK-5420-U5A1E | I7-3555LE, VGA+HDMI PCIE*4, PCI, Mini-PCIE (三扩展) |
| ARK-5420-U7A1E | I5-3610ME, VGA+HDMI PCIE*4, PCI, Mini-PCIE (三扩展) |
| Packing List | |
| Part No. | Description |
| - | ARK-5420 |
| - | 1 x Driver CD |
| 1960059401N001 | 2 x Supporting-angels |
| 1652002205 | 1 x 2-pin Terminal Block |
| Optional Accessory | |
| Part No. | Description |
| 1700019592 | Parallel cable/D-SUB 25P(F)/IDE#2 26P-2.0 15cm |
| 9692005000E | CF card board |
| 96PSA-A120W24T2 | ADP A/D 100-240V 120W 24V |
| 1702002600 | Power Cord 3P UL/CSA(USA) 125V 10A 1.83M 180D (for 120W) |
| 1700022940-01 | Power cord PSE 7A 125V 3P 3m DAC-ST01 (for 120W) |
| 1702002605 | Power cord 2P FRANCE 10A/16A 220V 1.83M 90D (for 120W) |
| 96PSA-A65W19P2-2 | ADP A/D 100-240V 65W 19V WO/PFC |
| 1700001524 | Power Cord 3P UL 10A 125V 180cm (for 65W) |
| 170203183C | POWER Code 3P Europe (WS-010+WS-083)183cm (for 65W) |
| 1700021376-01 | Power Cord 3P PSE 7A 125V 250cm(IEC60320-C5) (for 65W) |
| PCA-TPM-00A1E | TPM module |
| PCA-COM232-00A1E | COM 232 module (4xCOM 232 expaned by cable) |
| 98R1542000E | ARK-5420 TPM/COM module Bracket Accessory |
| 98R2542002E | ARK-5420 FAN module accessory |
| Embedded OS | |
| Part Number | Description |
| 2070013339 | Img WES7P ARK-5420 V5.6.6 10muti;sap |
| 2070013330 | Image WES2009 ARK-5420 V4.7 10muti;SAP |

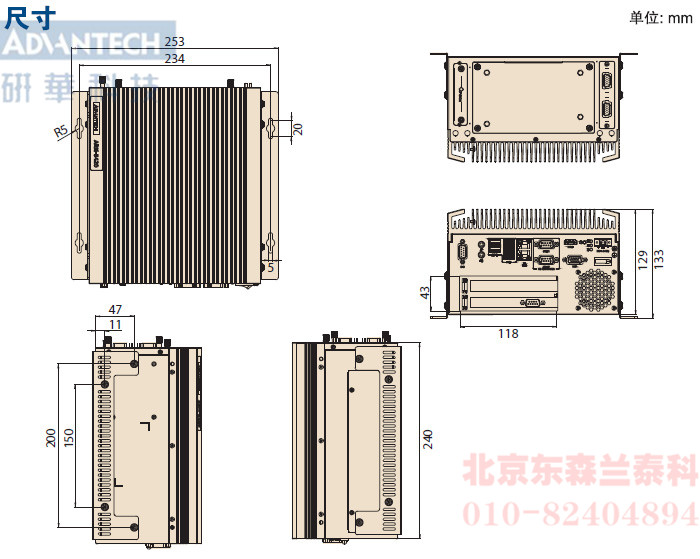

尺寸(单位:mm)

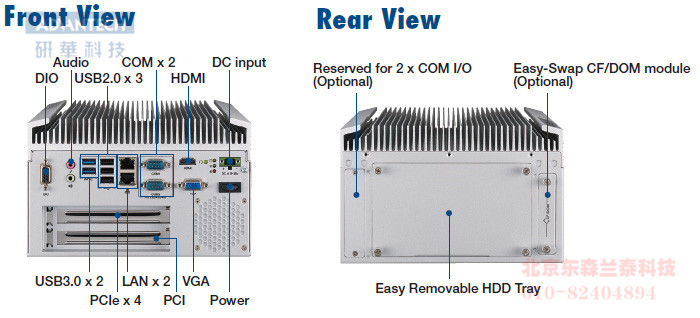

I/O Appearance
