产品介绍
紧凑型工业电脑，带第六/七代Intel® Core™ i CPU插槽（LGA 1151）

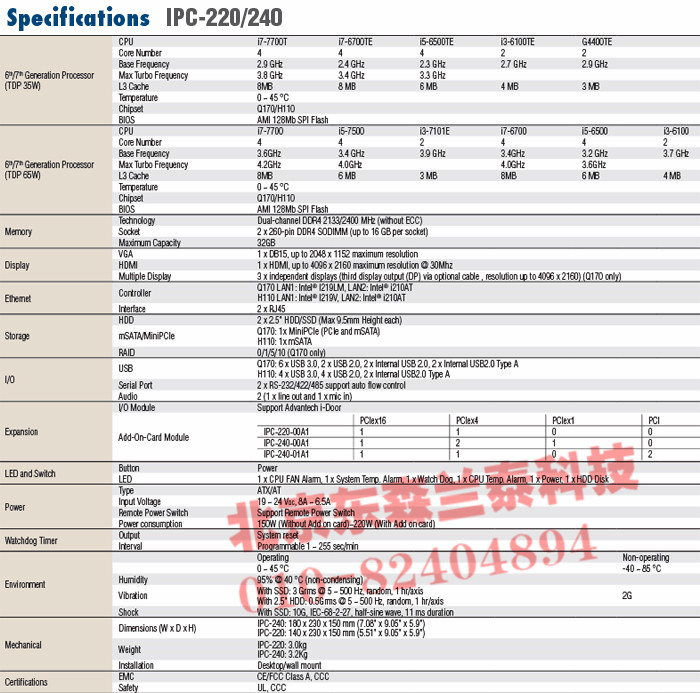

规格
订货信息
| Ordering Information | |||||||||
| Part Number |
Compatible Mother Board |
Chipset | PCIex16/PCIex/PCIex1/PCI | HDD/SSD | Power |
Internal |
|||
| IPC-220-00A1 |
PCE-2129-00A1 PCE-2029-00A1 |
Q170 |
1 | 1 | 0 | 0 | 2 x 2.5" |
19-24 |
2 |
| IPC-240-00A1 | PCE-2129-00A1 | Q170 | 1 | 2 | 1 | 0 | 2 x 2.5" |
19-24 |
2 |
| IPC-240-01A1 |
PCE-2129-00A1 PCE-2029-00A1 |
Q170 |
1 | 1 | 0 | 2 | 2 x 2.5" |
19-24 |
2 |
| Part Number | Chipset | USB3.0 | USB2.0 (External/Internal) | GbE | mSATA | COM |
| PCE-2029-00A1 | H110 | 4 | 4/0 | 2 | 1 | 2 |
| PCE-2129-00A1 | Q170 | 6 | 4/2 | 2 | 1 | 2 |
| IPC-220/240 Packing List | ||||||
| Item | Description | |||||
| IPC-220/240 | Compact Industrial Computer Chassis | |||||
| 1960070543T005 | Mounting Bracket | |||||
| 2001022001 | User Manual for IPC-220/240 | |||||
| 1652003234 | 4-pin Phoenix power connector | |||||
| 1652002205 | Remote SW 2 pin Phoenix connector | |||||
| 1652007291-01 | 4-Pin Plug in 3.5mm 90D(F) DC output connector | |||||
| 1700019968 | 2-port D-sub 9-pin COM cable | |||||
| 1960068789N105 | IDOOR COM x2 COVER | |||||
| Note: 2-port D-sub 9-pin COM cable to be assembled upon request | ||||||
| Embedded OS | ||||||
| Part Number | Description | |||||
| 20706WE7PS0017 | img WES7P PCE-2029 64b 1709 10 MUI | |||||
| 20706WE7PS0014 | img WES7P PCE-2129 64b 1709 10 MUI | |||||
| 20706WX9ES0017 | img W10 19EL PCE-2029 64b 1809 ENU(Entry) | |||||
| 20706WX9VS0015 | img W10 19VL PCE-2029 64b 1809 ENU(Value) | |||||
| 20706WX9HS0012 | img W10 19HL PCE-2029 64b 1809 ENU(High end) | |||||
| 20706WX9ES0022 | img W10 19EL PCE-2129 64b 1809 ENU(Entry) | |||||
| 20706WX9VS0018 | img W10 19VL PCE-2129 64b 1809 ENU(Value) | |||||
| 20706WX9HS0015 | img W10 19HL PCE-2129 64b 1809 ENU(High end) | |||||
| PCE-2029/2129 Packing List | ||||||
| Item | Description | |||||
| PCE-2029/2129 | 6th/7th Gen Intel® Core™ i CPU (LGA 1151) CPU board | |||||
| 1950023035N001 | Front IO Panel | |||||
| 2041202901 | Startup Manual for PCE-2029/2129 | |||||
| Optional Accessories | ||||||
| Part Number | Description | |||||
| 96PSA-A230W24P4-3 | ADP A/D 100-240V 230W 24V TB 4P | |||||
| 96PSA-A150W19P4-3 | Adaptor A/D 100-240V 150W 19V TB 4P | |||||
| 96PSD-A240W24-MN | DIN RAIL Adapter A/D 100-240V 240W 24V | |||||
| 1960053207N001 | CPU Cooler LGA1155 S-95W 92.9x92.9x46 4400RPM | |||||
| 1700008762 | COM3/4 (RS-232) Cable+PCIe Bracket | |||||
| 1702002600 | Power cord (USA) UUCSA, 3-pin, 10A, 125V, 1.83 M, 180 D | |||||
| 1700022940-01 | Power cord PSE, 3-pin, 7A, 125 V, 3 m, DAC-ST01 | |||||
| 1702002605 | Power cord (EU) 2-pin, 10/16A, 220V, 1.83 M, 90 D | |||||
| 1700024858-01 | POE Power Cable 2*2P-4.2/2*2P-4.2 15cm | |||||
| 98R12200010 | Display Port accessory kit | |||||
| 98R12200030 | HDMI port kit iDoor | |||||
| 98R12200040 | DVI port kit iDoor | |||||
| 1700031170-01 | 4-PIN DC to DC Power cable, DIN Rail Adapter, 150cm | |||||
| 1700029720-01 | Power Cord (USA), 3 Pin, DIN Rail Adapter, 183cm | |||||
| 1700030520-01 | Power Cord (CN), 3 Pin, DIN Rail Adapter, 150cm | |||||
| PCA-TPM-00B1E | TPM 2.0 module | |||||
| Note: The PCM series module requires a bracket (P/N : 1960065854N001) that must be ordered separately. | ||||||

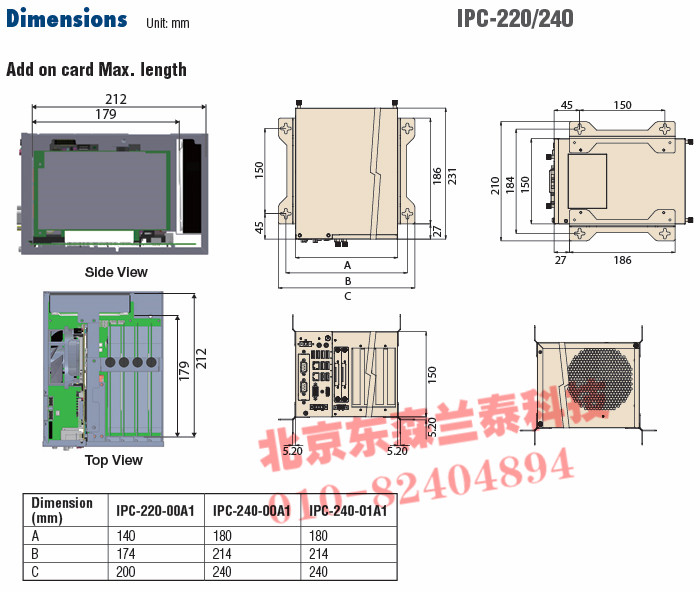

尺寸(单位:mm)

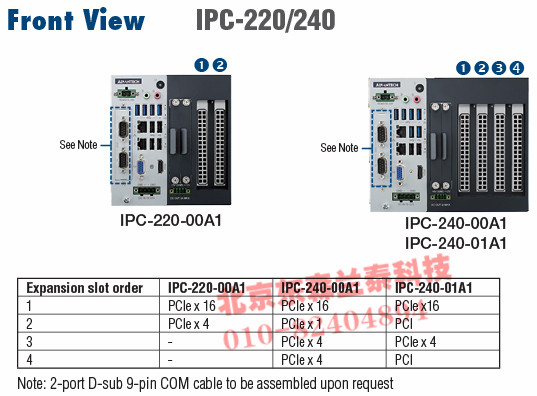

I/O Appearance
