产品介绍
研华的电视墙控制器专为电视墙应用而设计，已通过 Matrox 实验室的严格验证。 视频服务器标榜 Mura MPX 系列兼容性及工业可靠性，提供最佳的视频服务器服务。4U Intel® Xeon® E5-2600 Video Wall Controller, Supporting 20-output / 20-input Video Wall

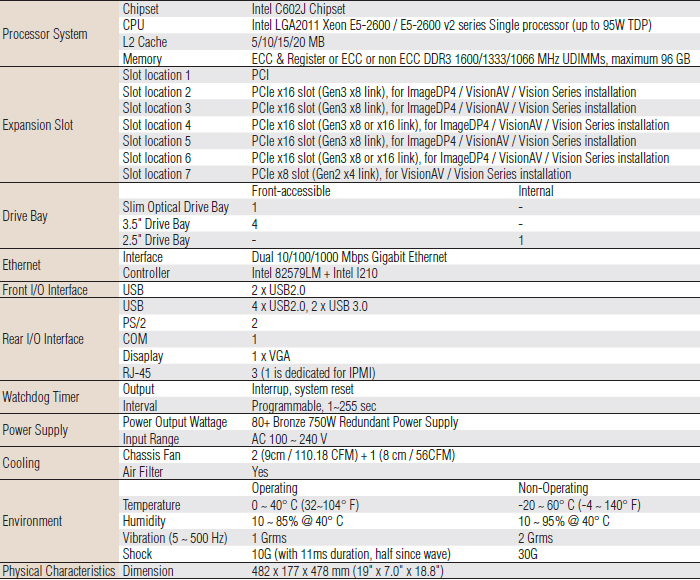

规格
订货信息
| 料号 | 说明 |
| AVS-543-01A1E | 4U Rackmount Xeon E5-2600 Video Wall Controller Supporting 5 Datapath Cards |
| 1960058073N001 | Cooler for Xeon E5-2600 series CPU with TDP Up To 95W |
| Note: Purchasing this CPU cooler is a must, other brand CPU cooler may result in compatibility issue. | |
| Optional Parts | |
| Item | Advantech P/N |
| SATA power wire 6-pin to big 4-pin (for slim ODD) | 96CB-SATAPOWER-6P1 |
| SATA cable with lock | 1700003194 |
| Rail Kit | 9680006905 |
| HD Audio-Card | PCA-AUDIO-HDA1E(Occupying 1 expansion slot) |
| System Contents | |
| Items | Advantech P/N |
| AVS-543 | Bare-Bone System AVS-543-01A1E |
| Driver CD | 2062822I00 |
| Note: CPU cooler needs to be purchased separately. | |

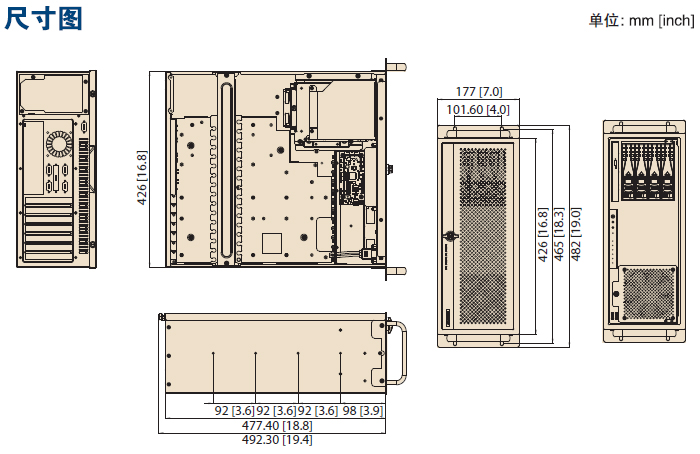

尺寸(单位:mm)

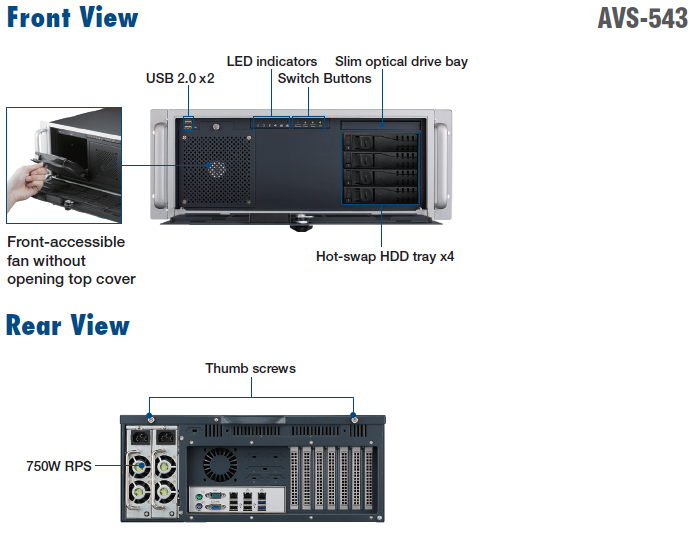

I/O Appearance
