产品介绍
2U 上架式机箱，适用于 EATX 服务器板卡 支持8个热插拔硬盘驱动盒

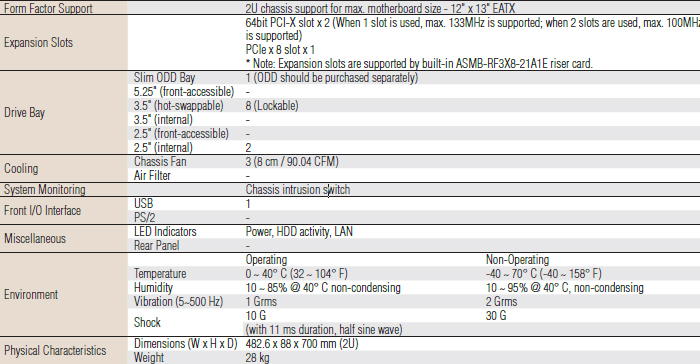

规格
订货信息
| 料号 | Power Supply |
| HPC-7280-R8A1E | 1+1 800 W Redundant Power Supply |
| Packing List | |
| Description | Quantity |
| 800W Redundant Power Supply Module (Pre-installed) | x 2 |
| Hot-swap 3.5" HDD Trays (Pre-installed) | x 8 |
| ASMB-RF3X8 Riser Card (Pre-installed) | x 1 |
| System Accessory (SATA Cable for Slim ODD x 1, Mini-SAS to 4 SATAs Cable x 2, Drive Bay Key x 2, Bezel Key x 2) | x 1 |
| Startup Manual | x 1 |
| Optional Accessories | |
| Part Number | Description |
| 19Z0000215N000 | HPC-7280 Chassis Rail Kit |
| 96CB-SAS-SAS-0.8 | Mini-SAS cable kit for add-on SAS RAID card* |
| *Note: When using add-on RAID card with mini-SAS connector(s), purchasing 96CB-SAS-SAS-0.8 cable is a MUST, single port RAID card needs 1 piece, dual port needs 2 pieces | |

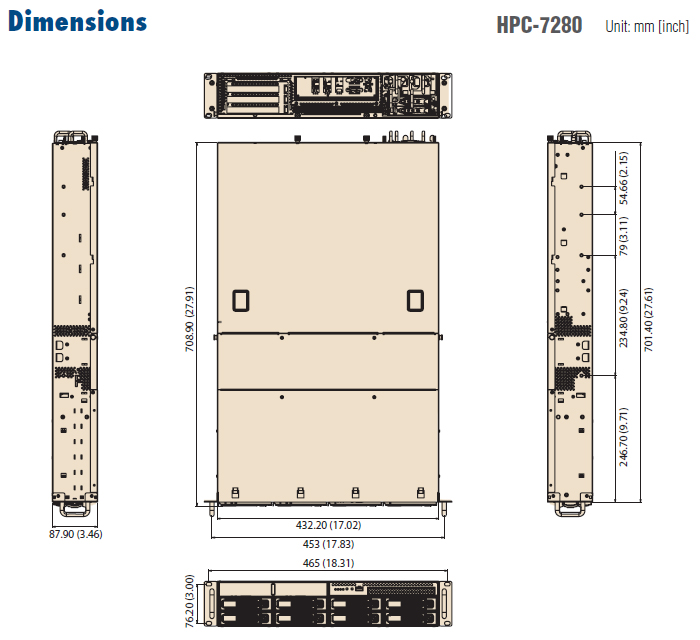

尺寸(单位:mm)

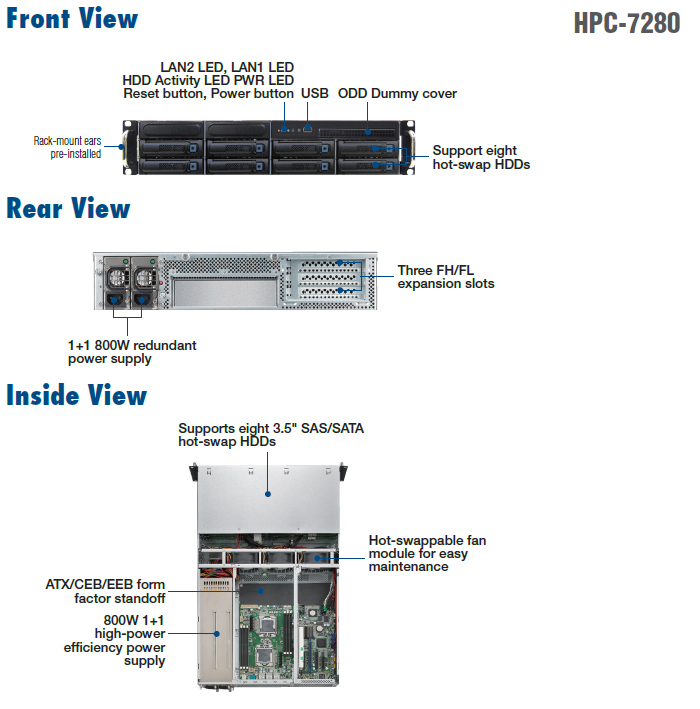

I/O Appearance
