产品介绍
1U Storage Chassis for MicroATX/ATX Serverboard with 4 Hot-swap Drive Bays

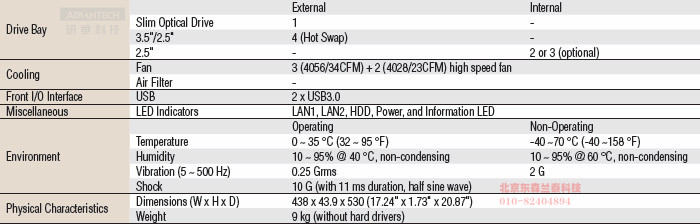

规格
订货信息
| HPC-8104TA-35A1E | Single ATX 350W,SATA 6Gb/s |
| HPC-8104SA-50A1E | Single ATX 500W,SAS 12Gb/s |
| Optional Accessories | |
| Part Number | Description |
| 1700026158-01 | Type-Y of system fan cable (4-pin) |
| 1700003194 | SATA ODD data cable |
| 96CB-SATAPOWER-6P2 | SATA ODD power cable |
| AIMB-RF10F-01A1E | 1U riser card with 1 PCIe x16 expansion |
| 1750007593-01 | 4028mm high speed system fan |
| 98R18104000 | HPC-8104 dual 2.5“ internal drives accessary kit |

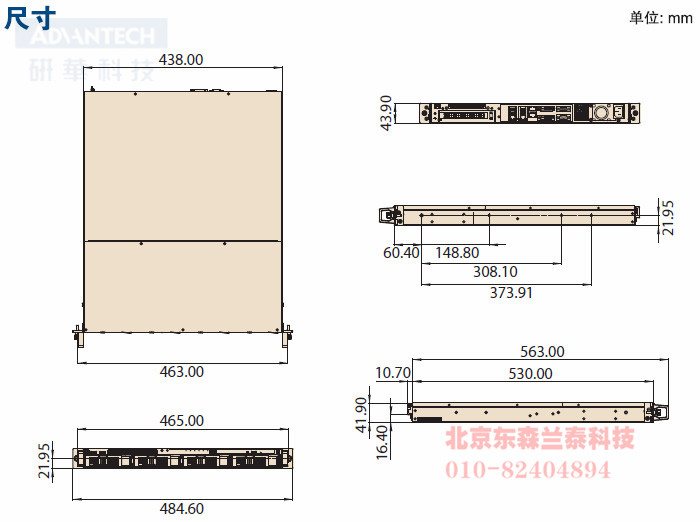

尺寸(单位:mm)

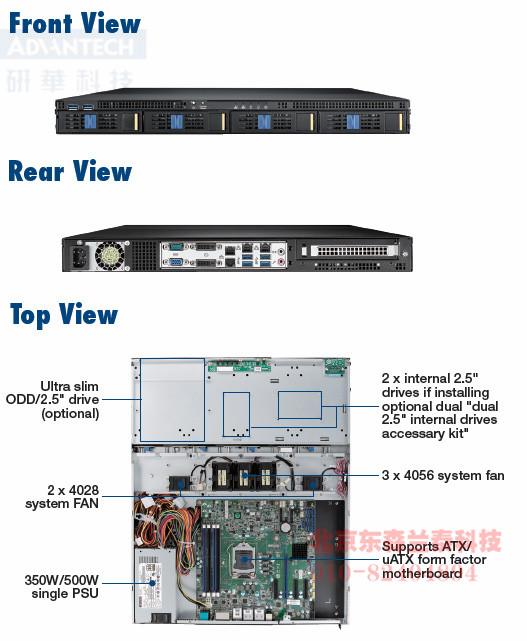

I/O Appearance
