主要特点
Supports 8th Generation Intel® Core™ i processor (LGA1151) with Intel Q370 chipset
Two 260-pin SO-DIMM up to 32GB DDR4 2666 MHz SDRAM
Supports triple display of Dual DP++/HDMI 2.0a/LVDS( or eDP)
Supports PCIe x16 (Gen 3), 1 x M.2 B key + 1 x M.2 E key, 6 USB 3.1 & 4 USB 3.0, and 3 SATA III
Supports wide range 12V~24V DC Input
Supports Intel vPro, AMT 12.0, Software RAID 0,1,5,10, TPM 1.2 / 2.0 (optional)
Supports WISE-PaaS/RMM and Embedded Software APIs
|
|
产品介绍
8th Gen Intel® Core™ i7/i5/i3 LGA1151 Mini-ITX with HDMI2.0a/Dual DP++/LVDS(or eDP), 2 x COM, Dual LAN, SATAIII, 6 x USB3.1 & 4 x USB3.0, M.2 (B-key & E-key)

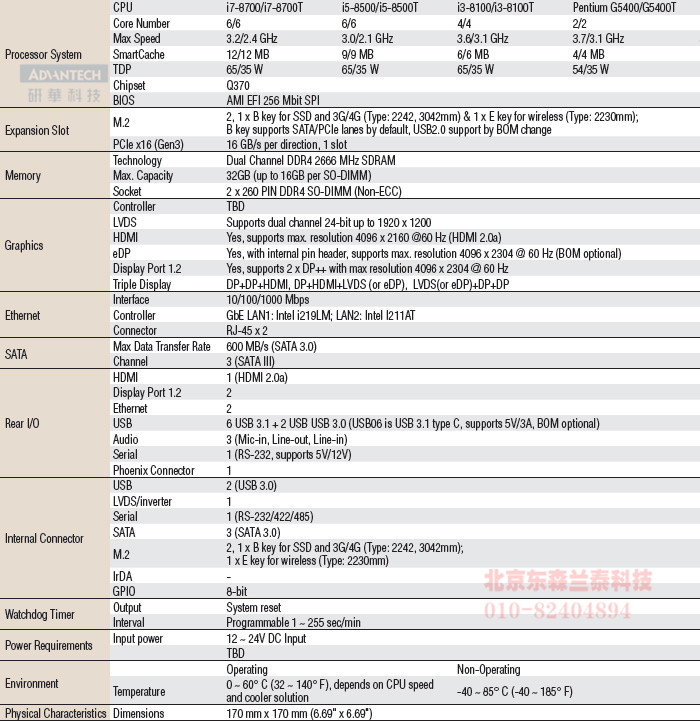

规格
订货信息
|
AIMB-276G2-00A1E |
Q370 |
|
AIMB-276G2-01A1E |
Q370 |
|
*() BOM options available on MP version |
|
Optional Chassis |
|
|
Part Number |
Description |
|
AIMB-B2000-15ZE |
Mini-ITX chassis with 150W ATX power supply |
|
AIMB-B2000-00YE |
Mini-ITX chassis (Optional external AC-DC 60W/84W Adaptor) |
|
Optional Accessories |
|
Part Number |
Description |
|
1700020277-01 |
Dual port USB 3.0 cable 30cm with IO bracket |
|
1703060191 |
KB/MS cable 1*6P-2.0/M-DIN 6P(F)*2, 19cm |
|
1700023768-01 |
1x4P Phoenix to DC Jack 15cm cable |
|
1960053207N001 |
LGA1150 CPU cooler for CPU TDP 65W, 92.9 (W) x 92.9 (L) x 46 (H)mm |
|
1960060732N001 |
LGA1150 CPU cooler for CPU TDP 45W, 80 (W) x 80 (L) x 32.2 (H) mm |
|
96PSA-A120W12P4 |
ADP A/D 100-240V 120W 12V C14 TERMINAL BLOCK 4P |
|
Embedded OS/API |
|
|
OS/API |
Part No. |
|
Windows 10 |
|
|
Riser Card |
|
|
Part Number |
Description |
|
AIMB-RF10F-01A1E |
1U riser card with 1 PCIex16 expansion |
|
AIMB-RF20F-02A1E |
2U riser card for 1xPCIex16 to 2 PCIex16 (both Lane are PCIEX8 only) |
|
** compliant with AIMB-276G2 (Q370) sku only |
尺寸(单位:mm)
I/O Appearance
-
|
