产品介绍
LGA1151第8代Intel® Core™ i7/i5/i3/Pentium®/Celeron® ATX，DVI/VGA, DDR4, SATA 3.0, USB 3.1& 6 COMs

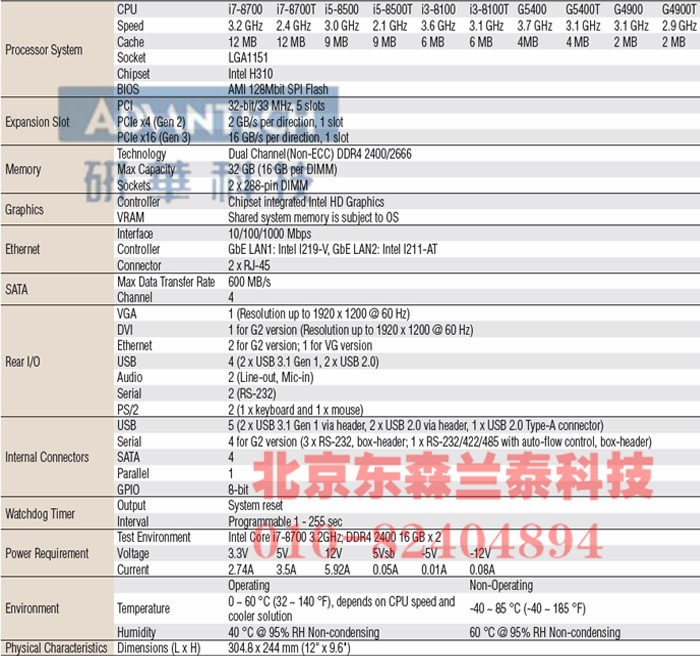

规格
订货信息
| Part Number | Display | COM |
| AIMB-706G2-00A1 | VGA + DVI | 6 |
| AIMB-706VG-00A1 | VGA | 2 |
| Optional Accessories | ||
| Part Number | Description | |
| 1701090401 | Single COM port cable(40 cm) | |
| 1701092300 | Dual COM port cable(28.5 cm) | |
| 1700020294-01 | Printer port cable kit(42 cm) | |
| 1700028292-01 | 2-port USB 3.0 cable w/ BKT(30 cm) | |
| 1700002204 | 2-port USB 2.0 cable w/ BKT(27 cm) | |
| 1960052651N021 | CPU cooler for 2U, 4U, and wallmount chassis | |
| 1960049408N001 | CPU cooler for 1U chassis | |
| 1960055954T000 | IO bracket for 1U chassis | |
| PCA-COM232-00A1E | 4-port RS-232 LPC module | |
| PCA-TPM-00B1E | TPM2.0 module | |
| Note: Purchasing AIMB-706's proprietary CPU cooler from Advantech is a must. Other brands' CPU coolers are NOT compatible with AIMB-705. | ||
| Riser Card | ||
| Part Number | Description | |
| AIMB-RP10P-01A1E | 1U riser card providing 1 PCI slot | |
| AIMB-RP30P-03A1E | 2U riser card providing 3 PCI slots | |
| AIMB-RP3PF-21A1E | 2U riser card providing 1 PCIe x 16 and 2 PCI slots | |
尺寸(单位:mm)

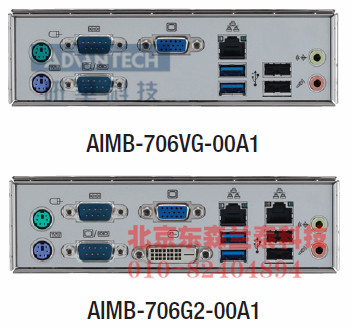

I/O Appearance
