产品介绍
LGA1151 6th and 7th Generation Intel® Core™ i7/i5/i3/Pentium/Celeron ATX with Triple Display, DDR4, SATA III

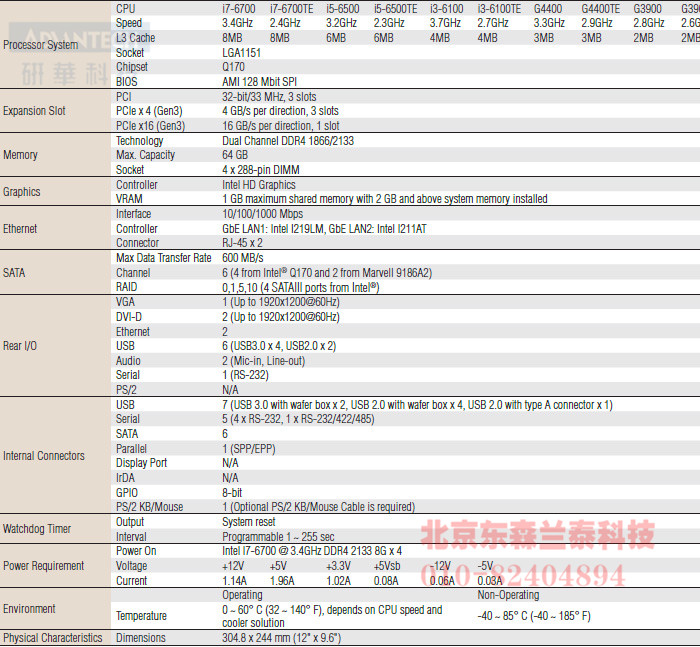

规格
订货信息
| Part Number | Description |
| AIMB-785G2-00A1E | LGA1151 ATX IMB Q170, DUAL LAN/3 DISPLAY |
| Note: SATA0 and SATA1(red SATA ports) don't support RAID function. | |
| Optional Accessories | |
| Part Number | Description |
| 1700002204 | Dual port USB 2.0 cable (27 cm) with bracket |
| 1700020277-01 | Dual port USB 3.0 Cable with bracket |
| 1960052651N021 | CPU Cooler for 2U, 4U and wallmount chassis |
| 1960049408N001 | CPU cooler for 1U Rackmount chassis |
| 1960069666N001 | IO bracket for 1U chassis |
| 1700020294-01 | Printer port cable kit (42 cm) |
| 1701092300 | COM port cable kit |
| 1700019268-11 | PS/2 KB/Mouse Cable |
| 1960063434N000 | IO Bracket for PS/2 KB/Mouse Cable |
| PCA-TPM-00A1E | TPM module to enable TPM and vPro technologies |
| Note: Purchasing AIMB-785's proprietary CPU cooler from Advantech is a must. Other brands' CPU coolers are NOT compatible with AIMB-785. | |
| Riser Card | |
| Part Number | Description |
| AIMB-RF10F-01A1E | 1U riser card with 1 PCIex16 expansion |
| AIMB-R4104-01A1E | 1U riser card with 1 PCIex4 expansion |
| AIMB-R430P-03A2E | 2U riser card with 3 PCI expansion |
| AIMB-R431F-21A1E | 2U riser card with 1 PCIex16 & 1 PCIex1 expansion |
| AIMB-R43PF-21A1E | 2U riser card with 1 PCIex16 & 2 PCI expansion |
尺寸(单位:mm)

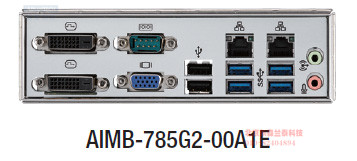

I/O Appearance
