产品介绍
4th Generation Intel® Core™ processor-based platform
规格
订货信息
| P/N | PCH | Backplane | LAN |
| PCE-7128G2-00A1E | C226 |
PCE-5BXX PCE-7BXX |
2 |
| Note: Both DP and DVI-D cable are optional. | |||
北京东森兰泰科技有限公司
电 话:010-82404894 / 010-62826279
移动电话:13811165433 13269032575
传 真:010-82404894-608
地 址:中国北京市海淀区西三旗SOCO公社(瑞旗家园)28号楼
邮 编:100096
公司主页:http://www.qdipc.com
淘宝网店:http://dslt.taobao.com
阿里网店:http://miaoajuan.1688.com
配料包
| Part Number | Description |
| 1700003194 | Serial ATA HDD data cable |
| 1700022749-11 | Serial ATA HDD power cable |
| 1701260305 | COM + printer ports cable kit |
| 1700060202 | Keyboard and mouse Y-cable |
| 1700008461 | 4-port USB cable kit |
| 9689000068 | Jumper package |
| 2190000902 | Warranty card |
| 2006512800 | Startup manual |
| 2066512802 | Utility CD |
可选配件
| 产品料号 | 描述 |
| 1960047831N001 | PCE-7128 optimized CPU Cooler (2U) |
| PCA-AUDIO-HDA1E | Audio module |
| PCA-TPM-00A1E | TPM module (Trust Platform management) |
| PCA-COM232-00A1E | 4 Ports RS-232 Module by LPC |
| PCA-COM485-00A1E | 4 Ports RS-485/422 Module by LPC |
| IPMI-1000-00A1E | IPMI2.0 module(Remote control management) |
| 1700020277-01 | 2 ports USB 3.0 cable W/ BKT(30cm) |
| 1700021831-01 | DP to DVI-D cable w/ BKT |
| PCE-DP10-00A1E | DP to DP cable w/ BKT |

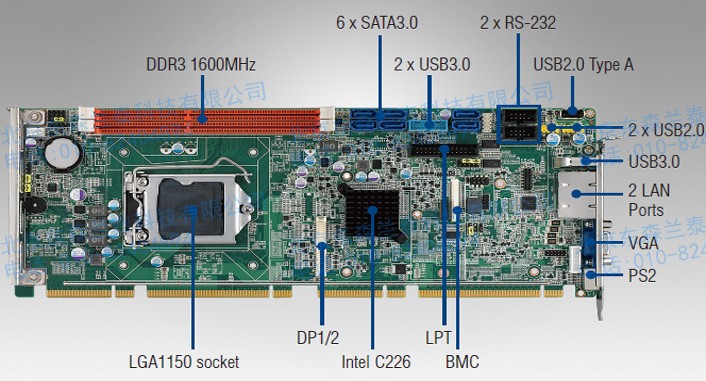

产品图片及框图
